      Dash Cyclonic Upright - Brush roll is not spinning

      This article contains all the steps necessary to fix brush roll issues with your Vacuum.

      TIP: If your vacuum is hard to push or your brush roll is not spinning, make sure to slide the heigh adjustment bar to the correct setting for the floor you're cleaning

      NOTE: If your brush roll is clogged or tangled the automatic shut-off will activate. Remove any debris and tangles then resume cleaning

      NOTE: Your thermal protector may have been activated. A thermal protector has been designed
                  into your cleaner to protect it from overheating.
                             1. Turn the cleaner OFF and unplug it.
                             2. Empty the dirt cup, and clean the nozzle, the filter, and the hose                                         connector.
                             3. After 30 minutes, once the unit is cleaned resume cleaning.
                  For more information on how to clean the unit visit here.

      Follow these steps to fix your brush roll:

      1. Lay down your unit so you can access the bottom of it.
      2. Remove the 9 screws on the bottom of the unit to remove the nozzle guard.
      3. Once the nozzle guard has been removed, pull the brush roll up and out from the belt.
      4. Cut any tangles or debris and replace the brush roll in the unit by passing it through the belt and aligning the ends with the unit. We recommend using your hand to rotate the brush roll to make sure it's properly installed
      5. Once the brush roll is installed in the unit, replace the nozzle cover and secure the 9 screws in place.

      Follow these steps if your belt is damaged or broken

      1. Following the previous steps, slide the damaged belt off the motor shaft and replace it with a new one (make sure the lettering is on the outside).
      2. Once you have properly placed the belt on the motor shaft (B), slip the brush roll through the belt and place it on the non-bristle part of the brush roll (A).
      3. Position the non-belt side end cap of the brush roll into its place in the unit, then carefully stretch the belt until the other side of the brush roll fits properly into place.
      4. Lastly, reattach the belt cover and the 9 screws back in the unit.

      Follow these steps if your Turbo tool is broken

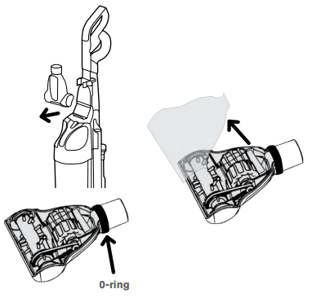

      1. Remove Turbo tool from vacuum and slide off the rubber O-Ring.  Lift the cover and clear
        out any clogs found.

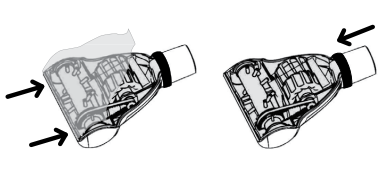

      2. Replace cover by securing tabs along front edge and then close cover.
      3. Finally, slip the 0-ring back onto the Turbo Tool
